T555III Pipeline Trencher CE Certified

Features and Benefits

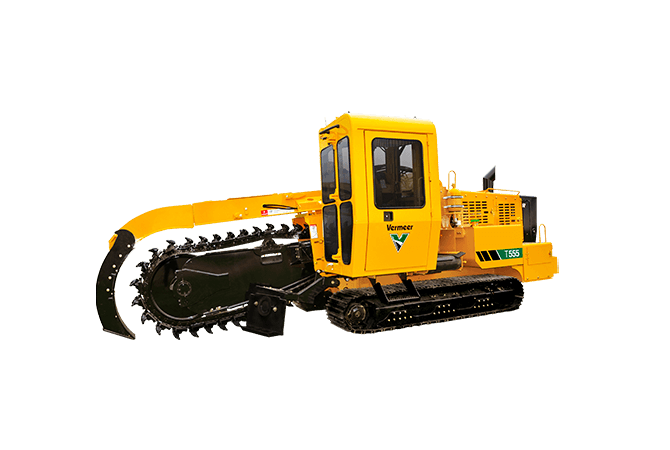

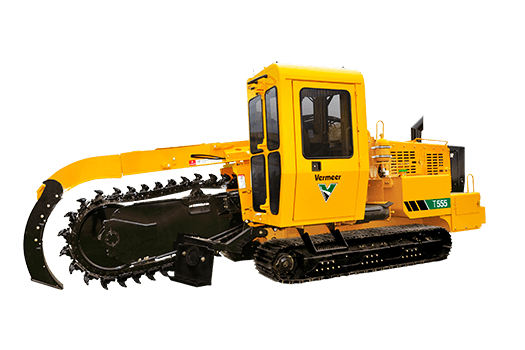

Vermeer T555III pipeline trencher
SmartTEC performance monitoring assists operators with adjustments to machine controls to help improve efficiency and tracks the operational performance of the machine on a consistent platform across all machine models.

Specifications

Compare Models
Show Metric
  • Transport Dimensions

    • Approach Angle 17 deg
    • Height Range 118" (299.7 cm)
    • Length with 20" (50.8 cm) End Idler and 4 ft (1.22 m) Boom 21 ft 6.4 m
    • Length with 20" (50.8 cm) End Idler and 6 ft (1.83 m) Boom 23 ft 7 m
    • Length with 20" (50.8 cm) End Idler and 8 ft (2.44 m) Boom 25 ft 7.6 m
    • Length with 40" (101.6 cm) End Idler and 4 ft (1.22 m) Boom 21 ft 6.4 m
    • Length with 40" (101.6 cm) End Idler and 5 ft (1.52 m) Boom 22 ft 6.7 m
    • Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom 23 ft 7 m
    • Weight Range 28,000 lb - 36,500 lb (12,700.6 kg - 16,329.3 kg)
    • Width Ranges 97" - 102" (246.4 cm - 259.1 cm)
  • Engine - Option one

  • Engine - Option two

  • Tracks

  • Conveyor

  • Attachments

  • Cab

  • Hydraulic System

Attachments

Trencher

Trencher

    • Boom Depth Options 4 ', 5 ', 6 ', or 8 ' (1.2 m, 1.5 m, 1.8 m, or 2.4 m)
    • Sectionalized Boom Yes; on 20 " (50.8 cm) End Idler only
    • Boom Top Rollers Yes; on 40 " (101.6 cm) End Idler only
    • Minimum Chain Speed 429 ft/min 130.8 m/min
    • Show More down arrow

PRO TIPS FOR THIS MACHINE
