D100x140 S3 HDD CE Certified

Features and Benefits

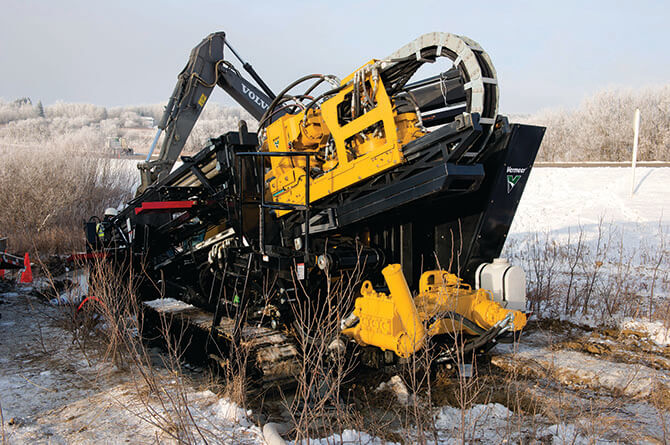

Vermeer D100x140 S3 horizontal directional drill
True open-top design accommodates mud motors and other large tooling. Responsive and powerful clamping and breakout actions can boost cycle time efficiency.
The D100x140 S3 is available with a wireless remote-controlled knuckle boom crane. At maximum reach of 19.5 ft (6 m), the crane has a rated capacity of 3,970 lb (1,800.8 kg).
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length (Minimum Transport) - 15 ft (4.6 m) 358 in 909.3 cm
    • Length (Minimum Transport) - 20 ft (6.1 m) 410 in 1041.4 cm
    • Width (Minimum Transport) 100 in 254 cm
    • Width (With Cab, Minimum Transport) 100 in 254 cm
    • Height (Minimum Transport) 136 in 345.4 cm
    • Height (With Cab) 136 in 345.4 cm
    • Weight - 15 ft (6.1 m) 49800 lbs 22588.9 kg
    • Weight - 20 ft (6.1 m) 57220 lbs 25954.6 kg
    • Weight (Cab Option) - 15 ft (4.6 m) 49800 lbs 22588.9 kg
    • Weight (Cab Option) - 20 ft (6.1 m) 57220 lbs 25954.6 kg
    • Angle of Approach 18 deg
  • Engine

  • Operational

  • Fluid Capacities

  • Drilling Fluid System Option One

  • Drilling Fluid System Option Two - 15 ft (4.6 m)

  • Drilling Fluid System Option Two - 20 ft (6.1 m)

  • Drilling Fluid System Option Three - 20 ft (6.1 m)

  • Crane

  • Features

PRO TIPS FOR THIS MACHINE
